In the last decades, light microscopy has emerged as an indispensable tool in the life sciences and in the materials sciences. Its strengths lie in its ability to get a three-dimensional image from the interior of sufficiently translucent samples. Conventional light microscopy suffers from the drawback that its resolution is limited to 200 – 300 nm due to the wave nature of light. Therefore, crucial dimensions like those on the molecular scale stayed out of reach.
Super resolution fluorescence microscopy avoids this limitation by using a trick. The properties of fluorescent markers are used such that the information within a blurred spot is read out sequentially.
In the life sciences, optical nanoscopy helps to visualize structure and function in living cells. This provides fantastic possibilities to gain insight into the ongoing molecular processes.
This knowledge is one of the keys to the understanding of diseases and the development of new diagnostic tools, novel drugs and their therapeutic use.
Fields of application in the materials sciences are the simulation of atomic and molecular systems with the help of colloidal particles or the investigation of the self-organization of nanostructures. The size of the used colloidal particles is not limited by the diffraction limit and can therefore be used as an important control parameter. Moreover, the basic principles of optical nanoscopy can not only be applied for imaging, but also for sample manipulation, e. g. by lithography of small structures below the diffraction limit for the fabrication of computer chips.
The “Optical Nanoscopy” department, established in the third quarter of 2010, performs applied research in the field of “fluorescence microscopy below the diffraction limit” and develops new methods. Its emphasis lies on two complementary far-field high resolution techniques in fluorescence microscopy:
- STED microscopy
- SMS microscopy
Collage of optical nanoscopy in cells. Conventional diffraction-limited fluorescence microscopy image (left, background) and schematic view (right) of cell organelles. Magnifying glasses (left, foreground) show nanoscopic images of microtubules (top) and mitochondria (bottom) with resolution of only some 10 nanometers
Another research focus of the department is the imaging of living cells using bioluminescence. In this process, which can be found in nature for example in fireflies, light is generated by the cells themselves through a biochemical reaction and can be used directly for imaging. Unlike with fluorescence-based methods, no excitation light is required, and hence imaging can be carried out gently over long periods of time without affecting the marker molecules and cells by external light.
Of particular importance is bioluminescence imaging without the addition of chemical substrates that are usually required to generate light. For this purpose, we use the bacterial bioluminescence system which can be applied not only in bacteria but also in other cell types such as human cells. The intensity of the bioluminescence light provides additional information about cell vitality and can therefore be used to investigate the effects of cell-damaging substances or certain drugs.
Various measuring systems are being developed and used for bioluminescence imaging on different size scales. These include camera- and fiber-based systems for recording macroscopic samples and a microscope for imaging individual cells.
Bioluminescence light of a bacterial liquid culture
STED microscopy
The key to overcome the diffraction barrier with freely propagating light waves is to use the properties of the fluorescent markers such that they are transferred between a bright, detectable state and a dark, non-detectable state or vice versa.
This is done in such a way that the region in which the markers can exist in their bright state is spatially confined.
The STED (STimulated Emission Depletion) principle uses stimulated emission to “switch” the fluorescent markers from their (bright) excited electronic state S1 to the (dark) electronic ground state S0.
In order to confine the region in which the markers are allowed to fluoresce beyond the diffraction limit, the excitation focus is superimposed by a donut-shaped STED focus. The former excites an ensemble of markers, while the latter switches these molecules off so rapidly by stimulated emission such that they do not have time to emit a fluorescence photon.
Only in the very center of the donut, at which the STED intensity is zero, the fluorescence emission is still allowed.
The STED image is gained by scanning the fluorescent spot, whose extent depends on the STED intensity and can be theoretically decreased arbitrarily, over the sample.
Transitions between the electronic ground state S0 and the first excited state S1
Superposition of a diffraction-limited excitation focus (green) and a donut-shaped STED focus (red)
isoSTED microscopy
IsoSTED microscopy is a clever combination of STED and 4Pi microscopy and reduces the (cigar-shaped) confocal volume to a sphere of only 30 nm diameter. This corresponds to a reduction of the focal volume by three orders of magnitude [Schmidt et al., 2009].
The coherent use of two opposing objective lenses (4Pi configuration) renders an almost isotropic resolution in all three spatial dimensions.
Comparison of the confocal focus (left) and the spherical isoSTED focus (right). (Image: Schmidt & Egner / MPIbpc)
This “3D-nanosope” was the first light microscope to unravel the interior of mitochondria (the cellular power plants) in intact cells [Schmidt et al., 2008].
It was therefore possible to image the distribution of two proteins, one forming clusters on the mitochondrial membrane, the other being distributed in the interior of the organelle, with unprecedented resolution.
Distribution of proteins Tom20 (red) and mtHsp70 (green) in mitochondria. (Image: Schmidt & Egner / MPIbpc)
Further information
STED microscopy
- Website of Department of NanoBiophotonics at the MPI for biophysical chemistry: http://www.nanoscopy.de
- S. W. Hell (2007):
“Nanoskopie mit fokussiertem Licht”
Physik Journal 6 (12), 47 – 53 - S. W. Hell (2008):
“Microscopy and its focal switch”
Nature Meth. 6 (1), 24 – 32, Perspective, Special Feature, see Method of the year 2008 - S. W. Hell (2009):
“Far-Field Optical Nanoscopy”
In: Single Molecule Spectroscopy in Chemistry, Physics and Biology. Springer (Berlin, Germany), 365 – 398
isoSTED microscopy
- R. Schmidt, C. A. Wurm, S. Jakobs, J. Engelhardt, A. Egner, S. W. Hell (2008):
“Spherical nanosized focal spot unravels the interior of cells”
Nature Meth. 5 (6), 539 – 544 - R. Schmidt, C. A. Wurm, A. Punge, A. Egner, S. Jakobs, S. W. Hell (2009):
“Mitochondrial Cristae Revealed with Focused Light”
Nano Lett. 9 (6), 2508-2510 - S. W. Hell, R. Schmidt, A. Egner (2009):
“Diffraction-unlimited three-dimensional optical nanoscopy with opposing lenses”
Nature Photonics 3, 381 – 387
SMS microscopy
High resolution fluorescence microscopy uses the properties of fluorescent markers to overcome the diffraction limit. In contrast to ensemble-based methods (e.g. STED microscopy ), molecules are manipulated individually in SMS (single marker switching) microscopy. In this scheme, single markers are randomly selected from a large number of markers being in a dark state and transferred to a bright, detectable state by a stochastic on-switching process. The position of such a single molecule is calculated from its diffraction-limited fluorescence image which is separated spatially and temporally from the spots of other molecules. Here, the localization precision is better than the diffraction limit and scales with √N where N is the number of detected photons.
After the molecule is transferred to a dark state, this process of switching on, reading out and switching off of randomly selected markers is repeated a sufficient number of times; the histogram of all collected marker positions represents the final super-resolved SMS image.
Principle of SMS microscopy. Left: Only few markers in the sample reside in their bright state so that their diffraction-limited spots do not overlap on the detector. Their localized positions are registered in a histogram. Middle: After the markers have been read out and switched off in the first cycle, new markers are switched on and localized. Right: These cycles are repeated until sufficiently many positions have been registered to reconstruct the object
4Pi-SMS microscopy
In the simplest case, an SMS image is a histogram of sufficiently many marker positions, each being calculated from the diffraction-limited fluorescence image of a single emitter. Here, the localization in the dimension along the optic axis poses a challenge. The 4Pi-SMS microscope solves this problem by using two opposing objective lenses coherently for fluorescence detection [Aquino et al., 2011]. The analysis of at least three interference patterns for each marker, each exhibiting a different relative phase, allows precise axial localization.
The 4Pi-SMS microscope can localize markers with <10 nm precision in three dimensions in an extended layer of 650 nm thickness. It can also distinguish between different species of markers, e.g. markers of different color.
Left: xy-SMS image of microtubules (red) and peroxisomes (blue) in an intact PtK2 cell. Right: same region with color-coded axial position (Image from [Aquino et al., 2011])
Further information
SMS microscopy
- S. W. Hell:
“Microscopy and its focal switch”
Nature Meth. 6 (1), 24 – 32, Perspective, Special Feature, See Method of the year 2008 - A. Egner, C. Geisler, C. von Middendorff, H. Bock, D. Wenzel, R. Medda, M. Andresen, A. C. Stiel, S. Jakobs, C. Eggeling, A. Schönle, S. W. Hell:
“Fluorescence nanoscopy in whole cells by asynchronous localization of photoswitching emitters”
Biophys. J. 93, 3285 – 3290, 2007 - C. Geisler, A. Schönle, C. von Middendorf, H. Bock, C. Eggeling, A. Egner, S. W. Hell:
“Resolution of Lambda /10 in fluorescence microscopy using fast single molecule photo-switching”
4Pi-SMS microscopy
- D. Aquino, A. Schönle, C. Geisler, C. v. Middendorff, C. A. Wurm, Y. Okamura, T. Lang, S. W. Hell, A. Egner:
“Two-color nanoscopy of three-dimensional volumes by 4Pi detection of stochastically switched fluorophores”, Nature Methods, 8 (4), 353 – 359, 2011 - S. W. Hell, A. Egner:
“Diffraction-unlimited three-dimensional optical nanoscopy with opposing lenses”, Nature Photonics 3, 381 – 387, 2009 - C. v. Middendorff, A. Egner, C. Geisler, S. W. Hell, A. Schönle:
“Isotropic 3D Nanoscopy based on single emitter switching”
Opt. Expr. 16 (25), 20774-20788, 2008
Bioluminescence imaging
Bioluminescence light is generated in the cell by the oxidation of an organic molecule (the luciferin), forming in a product in an electronically excited state which then emits a photon. This reaction is catalyzed by an enzyme (the luciferase).
The emitted light can be recorded with a camera to obtain an image of the sample. While the luciferase is produced by the cell, the luciferin, which is consumed during the reaction, is usually added externally.
Bacterial bioluminescence system
In order to maintain continuous light emission over long periods of time, the luciferin can instead be produced by the cells themselves. This requires additional enzymes, which are not yet fully known for most bioluminescence systems, so that it is not possible to transfer the corresponding metabolic pathways to other cell types or organisms. One exception is the system from bioluminescent bacteria, which comprises several enzymes in addition to bacterial luciferase for the production of the two substrates from common cell metabolites.

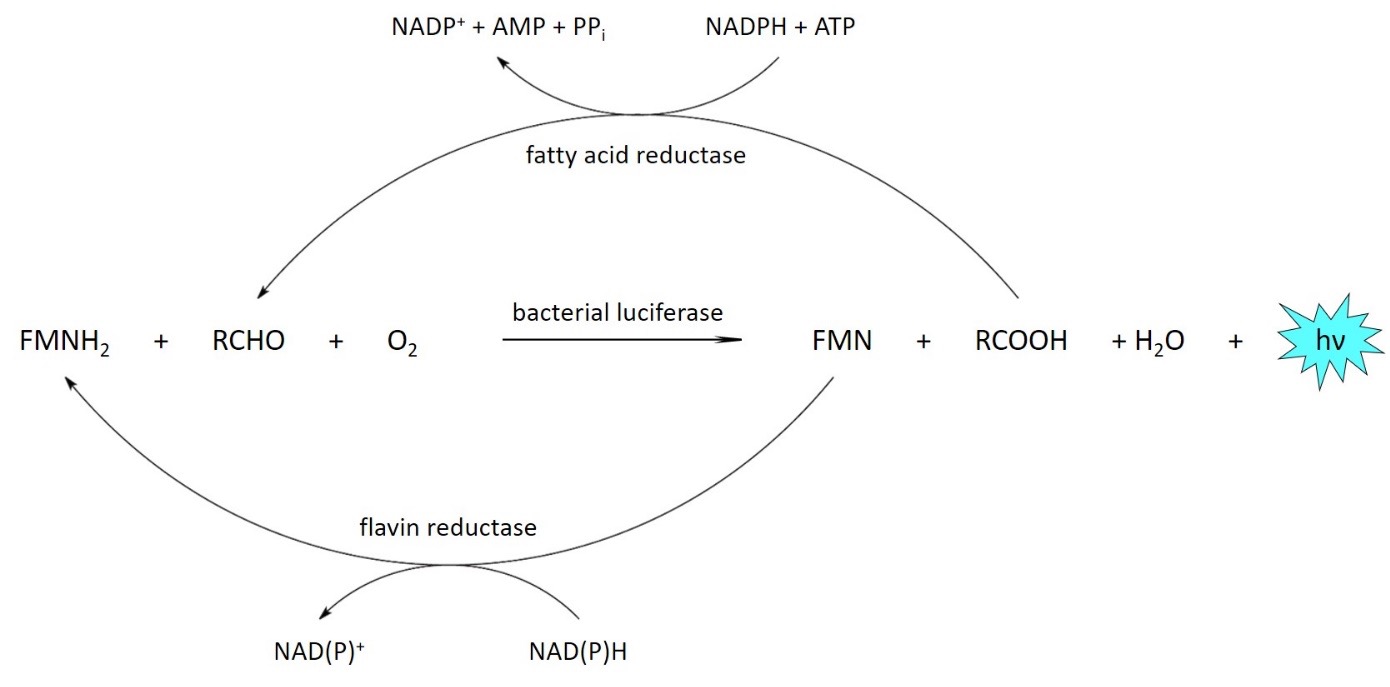

Bacterial bioluminescence reaction. Reduced FMN (FMNH2) and a long-chain aldehyde (RCHO) are oxidized by the luciferase with oxygen. The two products are converted back into their reduced form by the fatty acid reductase complex and a flavin reductase under consumption of cellular energy.
Bioluminescence in bacteria
The corresponding enzymes from bioluminescent bacteria can be introduced into other bacteria where they also produce light and can be used for cellular imaging. As the brightness is comparatively low, improved variants of the enzymes have been generated which result in a significantly increased light emission in bacteria such as Escherichia coli.
This enables the observation of individual cells by bioluminescence microscopy. In addition, bacteria can also be imaged in large sample areas, for example to track their growth and spread in food over time.
Left: Bioluminescence of individual E. coli cells. Right: Bioluminescent E. coli cells on a slice of raw potato.
Bioluminescence in mammalian cell lines
In addition to bacteria, the enzymes of the bacterial bioluminescence system can also be introduced into other cell types such as human cells to enable light emission without the addition of external substrates.
Using different approaches, the brightness of the system in mammalian cells could also be greatly increased so that individual cells can be observed with the aid of a bioluminescence microscope.
Bioluminescence of HeLa cells containing the bacterial bioluminescence system.
Bioluminescent organisms
In addition to mammalian cells cultured in vitro, the bacterial bioluminescence system can also be used to establish bioluminescent properties in organisms.
In this way, mouse models could be developed that emit light during their entire life span and thus enable long-term bioluminescence measurements to be carried out.
Light emission of a mouse with an established bacterial bioluminescence system.
Further information
A. Kiszka, C. Dullin, H. Steffens, T. Koenen, E. Rothermel, F. Alves, C. Gregor (2024):
“Autonomous bioluminescence emission from transgenic mice”
bioRxiv, doi: 10.1101/2024.06.13.598801
Brinker, C. Gregor (2024):
“Increased autonomous bioluminescence emission from mammalian cells by enhanced cofactor synthesis”
Chemosensors 12, 223
Gregor (2022):
“Generation of bright autobioluminescent bacteria by chromosomal integration of the improved lux operon ilux2”
Sci. Rep. 12, 19039
Gregor, J. K. Pape, K. C. Gwosch, T. Gilat, S. J. Sahl, S. W. Hell (2019):
“Autonomous bioluminescence imaging of single mammalian cells with the bacterial bioluminescence system”
Proc. Natl. Acad. Sci. U. S. A. 116, 26491 – 26496
Gregor (2018):
“Autonome Lichtproduktion in Bakterien mit optimiertem ilux-Operon”
BIOspektrum 24, 697 – 699
Gregor, K. C. Gwosch, S. J. Sahl, S. W. Hell (2018):
“Strongly enhanced bacterial bioluminescence with the ilux operon for single-cell imaging”
Proc. Natl. Acad. Sci. U. S. A. 115, 962 – 96
